- Place of Origin: China
- Brand Name: apalloy
- Model Number: 60001

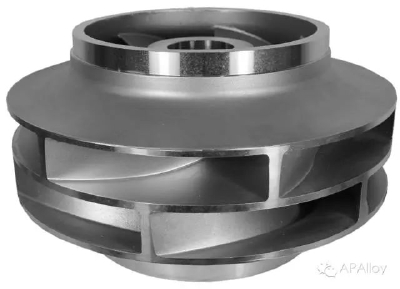

Double suction impellers can be used in centrifugal pumps, water pumps, double suction pumps and so on. Using double suction impellers can greatly decrease the cavitations.
Due to the structure of double suction impellers, we need to build a complex shell. It is difficult to clean the sand inside as well.

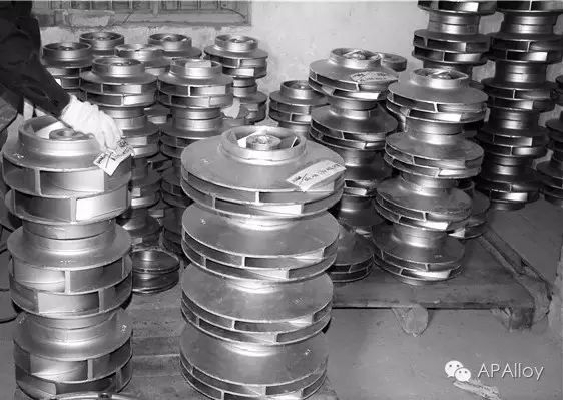

We have produced different sizes of double suction impellers, here are some of the different sized double suction impellers we have made :
It is heavy and large in size which make it more difficult to manufacture. The largest we have produced: Ø516mm X 220mm and 62.3kg. If you are interested in this type of component, please feel free to contact us.
- Place of Origin: China
- Brand Name: apalloy
- Model Number: 60001
Double Suction Impellers | ||||
Key Dimension(mm) External dia. X Height X Width of waterway | Weight(KG) | Material | Reference Photos | |
244 X 170 X 42 | 14.82 | Aus, Martensitic and Duplex stainless steel
ASTM CF3M, CF8M, CF3, CF8, CN7M, CA6NM, CD3MWCuN/6A, CD4MCuN/1B, 2205, 3A, 4A
| ||
304 X 160 X 28.5 | 17.1 | |||
348 X 188 X 34 | 30.9 | |||
352 X 222 X 54 | 32.9 | |||
400 X 218 X 39 | 43.6 | |||
370 X 169 X 23 | 22.4 | |||
444 X 150 X 14 | 42.9 | |||
457 X 160 X 23 | 41 | |||
516 X 220 X 28 | 62.3 | |||
